KeyWatcher Illuminated Support
- Free phone support during normal business hours for the life of your system.
NOTE: We only support customers that bought directly from Moreland Security Solutions, Inc. or that reside in Maryland, D.C. & Northern Virginia.
Although modules are available in 6, 8 and 16 location configurations, we're using the 16 location configuration in the examples below.
3 Module System
|
6 Module System
|
| ACCESS DEVICE TYPE | DEVICE SETTING |
| KeyWatcher 2 to KeyWatcher 3 conversion | KW2 Weigand - Standard |
| KeyWatcher 3 (first time connected to HK2) | Weigand |
| IBC Reader | Magstrike Track 2 or KW2 Track 2 |
| HID Prox Reader | Weigand |
| Mifare Reader | KW2 Weigand – Data |
| Morse Card Swipe & Cards | Magstrike Track 2 |
| Morse Card Swipe & Customer Cards | Track 2 (KW2) |
| HK2 (HID 35-bit Generic) | Weigand |
Some networks are slugish or have intermitent connection issues. You can modify a setting to force the software to attempt connecting for a specified number of trys. Navigate to the folder where your database(s) are stored. Each KeyWatcher system will have one mdb file type and one kpi file. Locate the kpi for the desired system and find this line.
<key name="MaxCommErrCt">10</key>Simply change the number such as 10 in the example above to a higher number.
The diagram below details how to manually release a smartkey from a location using a small standard screwdriver.
Assuming your database(s) is stored at "\\sllvh04\KeyWatcher" you should first back up this parent and all children. In the example below "\\sllvh04\KeyWatcher" would be replaced with the new server path. We recommend you avoid spaces in the name and as well as avoiding map drives.

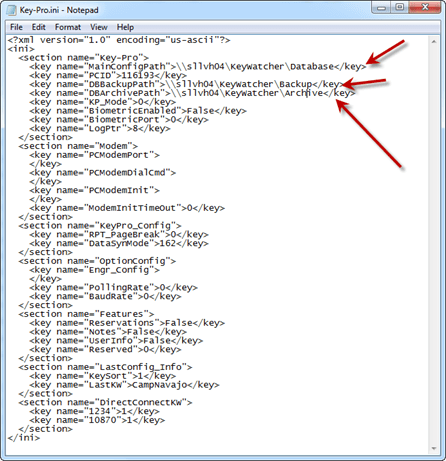

The Key-pro.ini configuration file is stored as shown below and must be modified on EVERY client.
Windows XP
C:\Program Files\Morse Watchman\KeyPro III
Windows 7 or Vista
C:\Users\USER NAME\AppData\Local\VirtualStore\Program Files (x86)\Morse Watchman\KeyPro III
Of course do the obvious and make sure that all client copies are closed.
Basic Biometric Fingerprint Concepts (PDF)
These are compatible
Cables-to-GoAmazon: Keyspan by Tripp Lite USA-19HS Prolific PL2303)
(Make sure you download and install the most current driver)
These are NOT compatible
Micro Connectors, Inc. -- Model: E07-160C
NOTE: Usually best to reboot after installing drivers

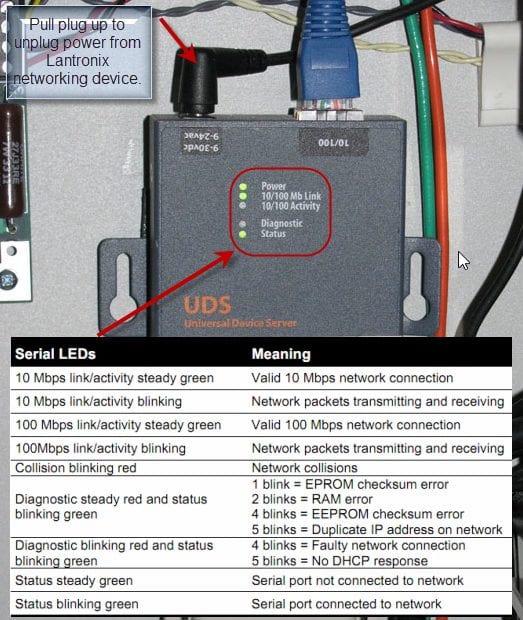

The diagram below explains how to power cycle the Lantronix.
Additionally, if you are still having network connection issues, there is a chart indicating how to interpret the LED lights.
- Please understand this error has nothing to do with KeyPro.
- Ignore the first paragraph as it is generic Microsoft DotNet error.
- Never click "Continue", only Close.
- Reviewing the "Details" will also not be of any help.

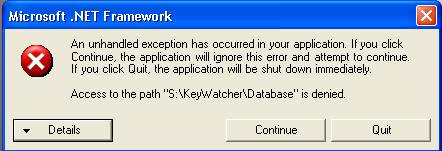

This is an easy error as it literally describes your problem. Whoever is logged in does not have access to the path where the database is stored. If you attempted to access this path outside of KeyPro using Windows Explorer you would also get an error. In laymens terms, it would be no different than a MS Word or Excel doc stored on the network that you can't access. So this has nothing to do with Keypro.
Possible causes would be:
- the users permissions have changed
- the server name has been changed
- the mapped drive is lost
- the network is down
The diagram below details how to verify that the springs are correctly seated, which is the most likely cause.

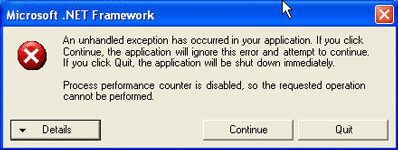

(The “Process Performance” errors are a product of the Windows OS and not the KeyPro software.)
Instructions How to Fix this error (PDF)

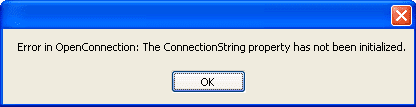

This error means that within the Database folder a KPI configuration file exists, but the required accompanying MDB database file is missing.
- How to Manually Collect Transactions and Reset Auto Transaction Collection when it stops working

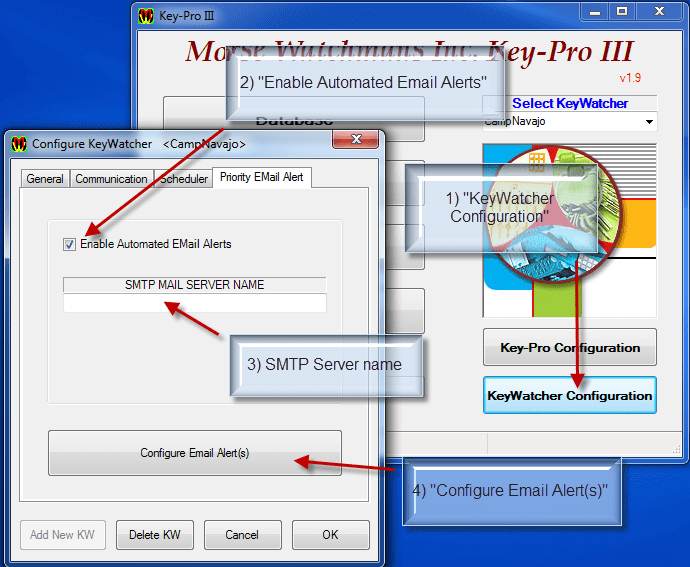

- Configuring SMTP Service with Windows XP
- Sync Date and Time for daylight savings time
Change KeyPro Database path/location
How to Archive in Keypro 3
Using Keypro 3 to Remove Key Sets Using Key Notes
Reset Lantronix to Fix Communication Errors
Changing KeyPro Software and Lantronix IP Addresses
